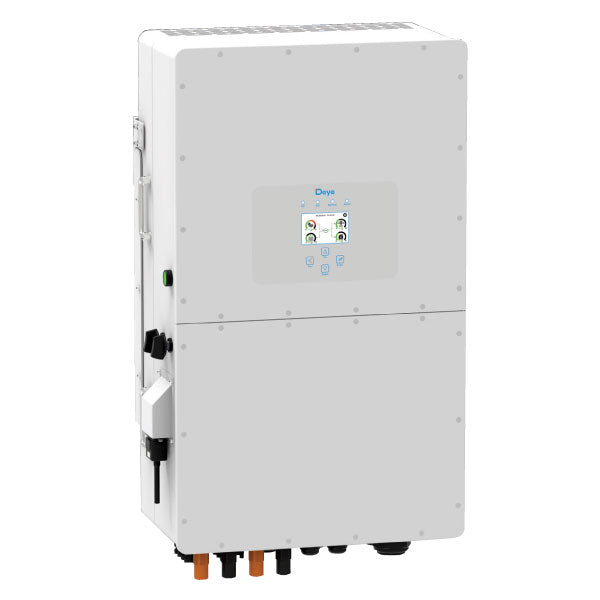

The Deye 30KW 3 Phase Hybrid Inverter is a powerful inverter that can be used in both commercial & residential systems. This is a hybrid system which means that it can store solar energy in batteries for later use. This can be helpful for homeowners and businesses that want to be able to use solar power even when the sun is not shining.
The Deye 30KW Hybrid inverter has a maximum output power of 30 kW and a maximum DC input power of 39 kW. It also has two MPPT trackers, which allow it to connect to two different solar arrays. This can be helpful for homeowners and businesses that have roofs with different orientations or shading conditions.
TECHNICAL DATA:
- Battery compatibility: Lithium ion
- Battery voltage range: 160-800
- Max. charging current (A): 50+50
- Max. discharge current (A): 50+50
- No. of battery inputs: 2
- Max PV input power (W): 39000
- Max. DC input voltage (V): 1000
- Start-up voltage (V): 180
- MPPT Voltage rage (V): 150-850
- Rated DC Input voltage (V): 600
- Max. operating PV input current (A): 36+36+36
- Max. Input short circuit current (A): 55+55+55
- NO. of MPP TRackers/No. of strings per MPP Tracker: 3/2+2+2
